Description

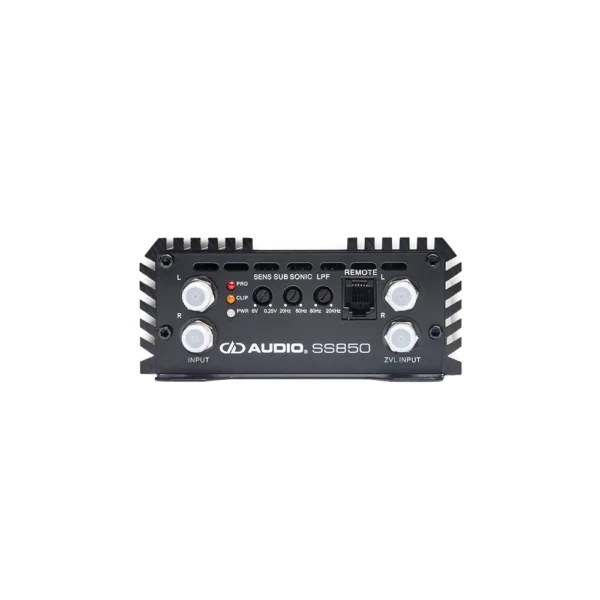

Maximum efficiency, from stock electrical systems, is the aim of the SS850. Coming in at over 850 Watts RMS under 1% THD, it can drive single, dual or even triple subs to high output levels. Sharing the same architecture as the other high speed, half bridge SS amplifiers, the over-spec power supply delivers the strong impact that low cost full bridge designs fall flat on.

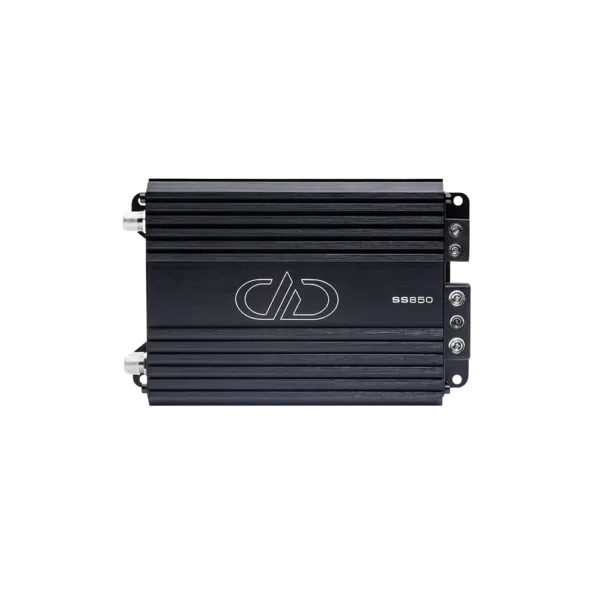

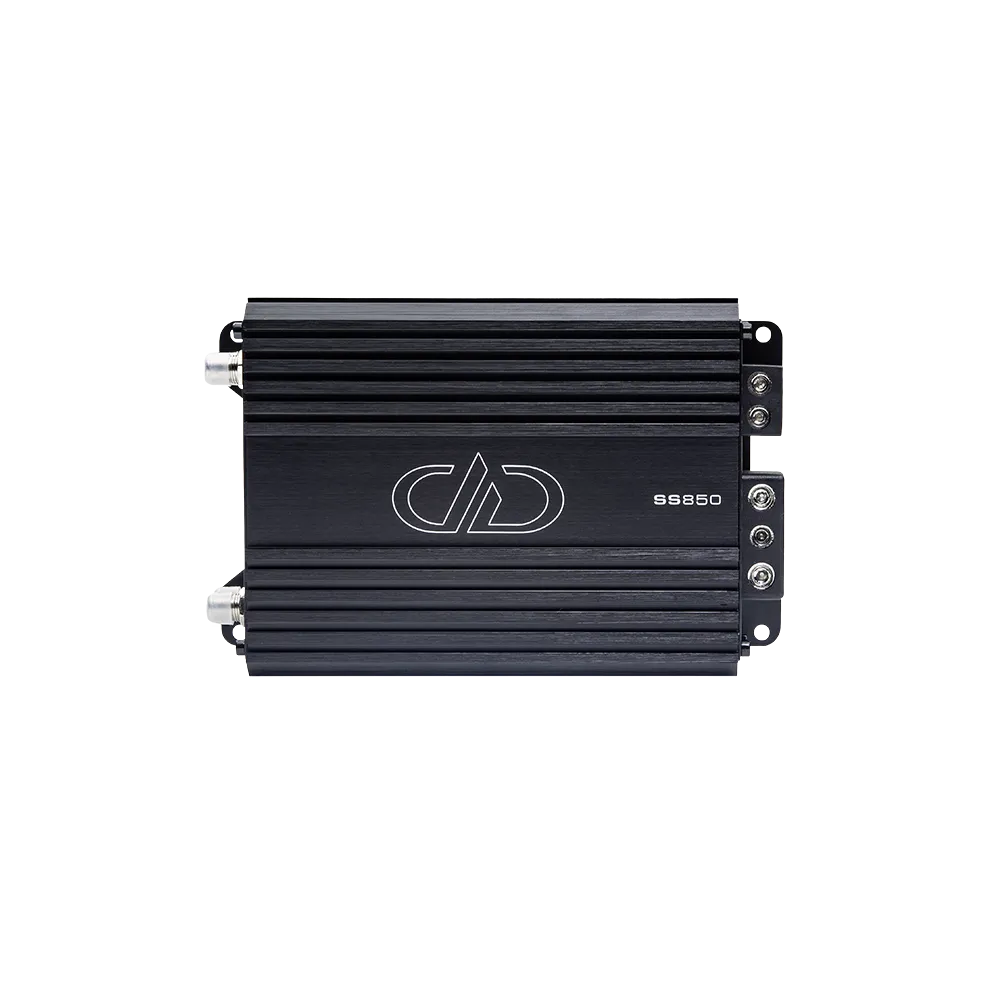

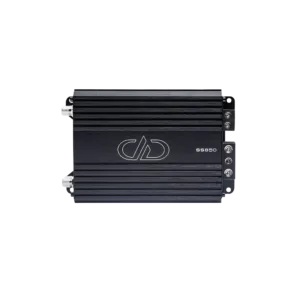

The new SS/SX amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area.
When every Watt matters, the SS850 delivers the best bang for the buck.
Specifications
Operating Voltage: 9 – 16
Test Voltage: 14.4
Input Channel(s): 2
Output Channel(s): 1
Continuous Wattage @2ohm: 575
Continuous Wattage @1ohm: 850
Max Current Draw (Amps): 90
RCA Input Voltage Sensitivity: 6 – 0.25
RCA Input S/N: 95
Damping Factor: 100
THD: 1.0%
Frequency Response (Hz): 20 – 20k
Sub-Sonic Filter: 20 – 80
Low-Pass Filter: 80 – 20k
ZVL Input: Yes
Remote Control: Remote Included in Box
Power Wire Gauge: 4
Speaker Wire Gauge: 8
Dimensions (Inches): 5.75 x 4.6 x 2
Dimensions (MM): 141 x 117 x 50
Shipping Weight (Lbs): 4
| Weight | 2,8 kg |
|---|
