Description

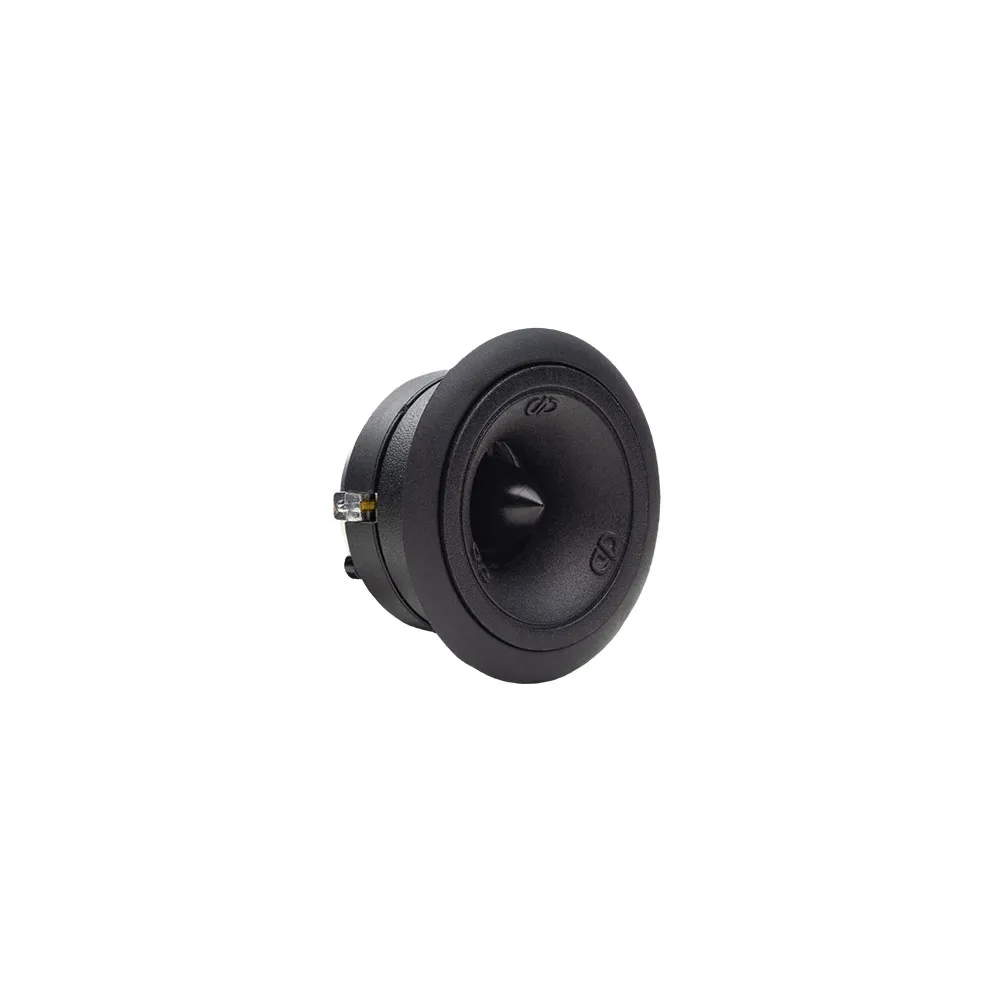

The Voice Optimized B1 (1 inch bullet tweeter) entered its fourth generation of development with another exercise in downsize engineering. The result of this successful endeavor is the all new VO-MBTN125 Micro Bullet Tweeter Neo and it comes to you as a full-on compression bullet tweeter, similar in size to a radiating dome tweeter, with flush mountability, bridging the output and clarity of pro audio with the practicality of OEM design.

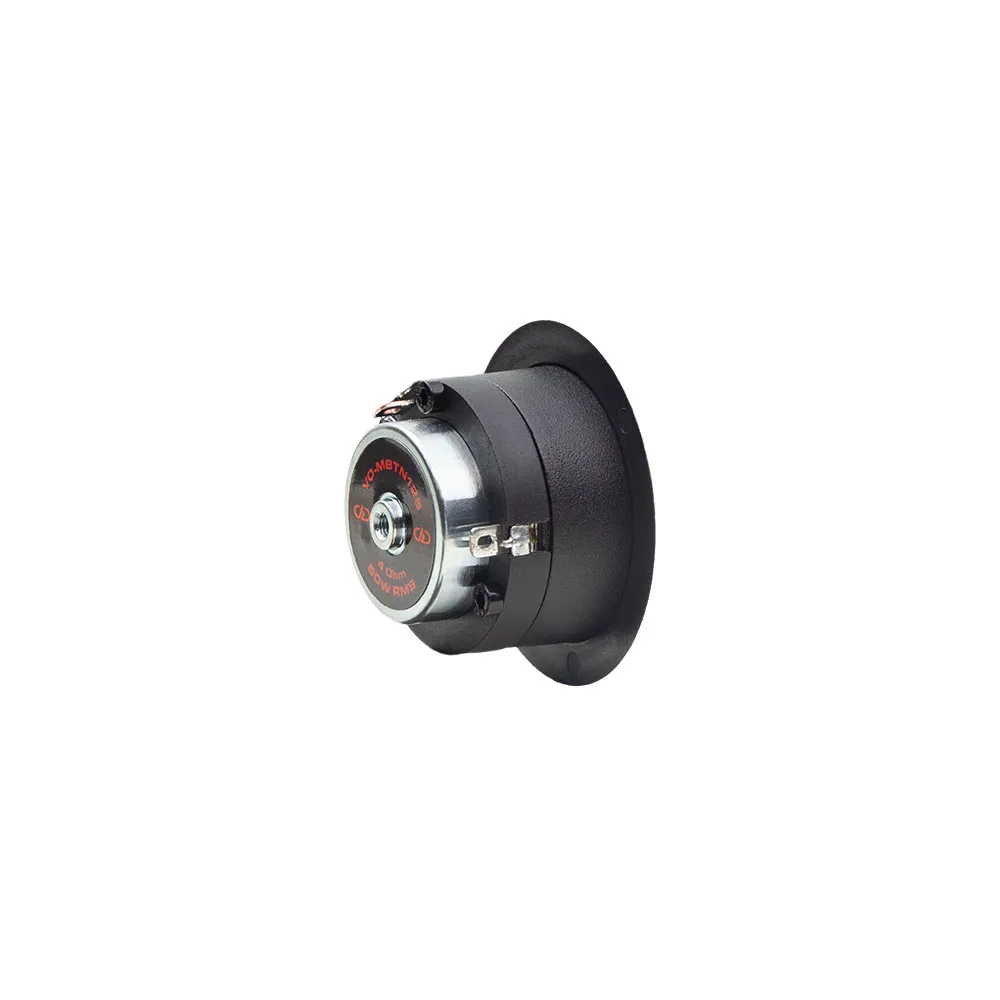

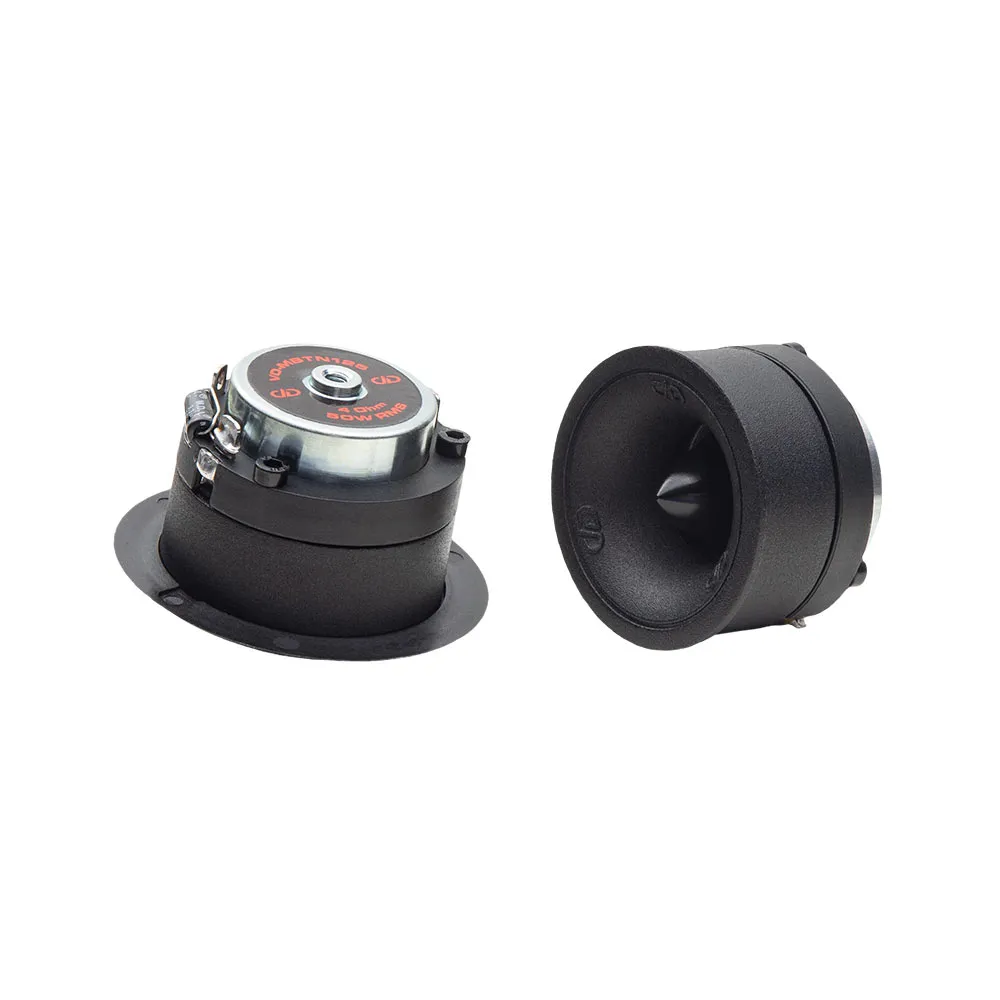

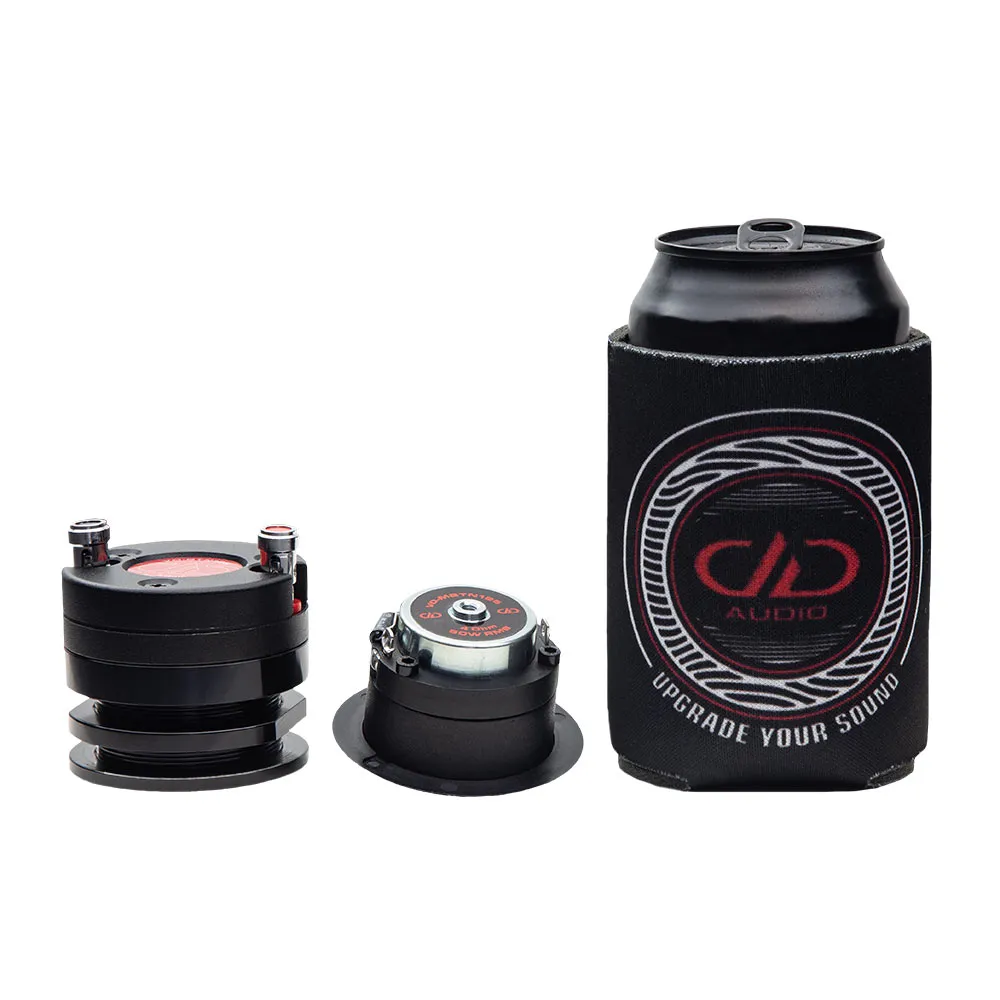

With a total diameter of 45mm across and a total depth of 34mm, the VO-MBTN125 is clearly compact, but there’s more than just size contributing to its overall versatility. The new cast aluminum horn tooling incorporates a removable flange and grip ring that facilitates conventional door panel mounting. A threaded bolt hole is included on the back for rear support. The low profile design has been made for use with OEM grills and off the shelf adapter plates, widening the application potential to dashboards, A / B pillar mounting, and soundbar locations previously restricted to lower-power dome tweeters.
Specifications
Speaker Size (In): 1
Watts RMS: 50
Watts Peak: 100
Impedance: S4
VCD (In): 1
Frequency Response (Hz): 3.5k – 20k
dBSPL: 104
Mounting Diameter (In): 1.8
Mounting Diameter (MM): 45
Mounting Depth (In): 1.4
Mounting Depth (MM): 34
