Description
2-channel amplifier with class A/B circuit, integrated active crossover and black anodized heatsink
2-channel amplifier
Class AB technology
Variable active crossover and bass boost
Stable power supply
Large terminals

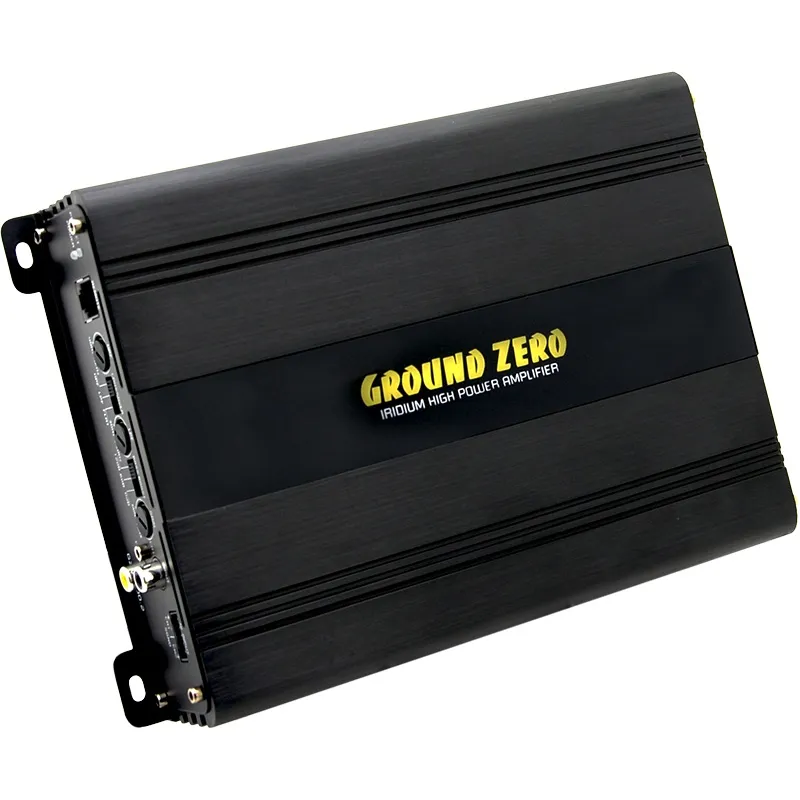

Black anodized heatsink with Ground Zero lettering
High-level input with auto-on function
Specifications
Type High power class A/B amplifier
Channels 2
Output Power (@ 4Ω) 2x 135 Watts RMS
Output Power (@ 2Ω) 2x 220 Watts RMS
max. Output Power (CEA-2006A / 10%THD+N) 550 Watts
Ouput power (@ 4Ω) bridged 460 Watts RMS
Frequency Response 8 Hz – 28 kHz
HPF / LPF / BPF ● / ● / ○
Bass Boost / Phase Shift ● / ○
High-Level Input / Auto-on ● / ●
Remote Control included
BIAS Setting ○
Linkmode ○
Dimensions (w x h x L) 168 x 49 x 248 mm / 6.61″ x 1.93″ x 9.76″
