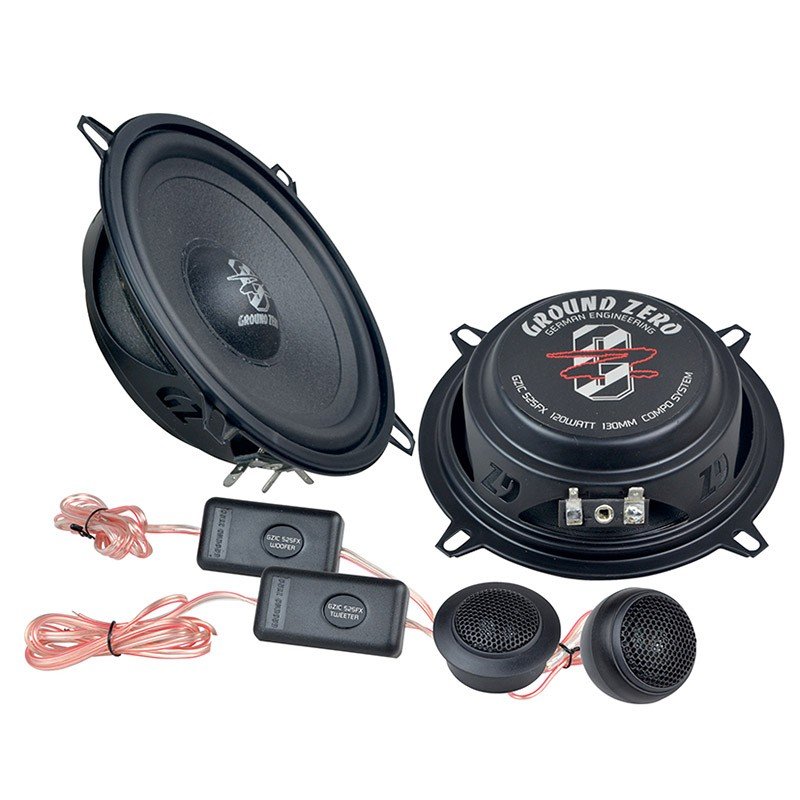

Ground Zero GZIC 525FX

Features

– Flat component speaker with coated paper cone
– Resonance free steel basket
– Rubber surround
– 0.75” Silkdome-Tweeter
– 12 dB cable-crossover incl. Tweeterprotection

Technical data

Model: GZIC 525FX
Typ: 2 Way compo

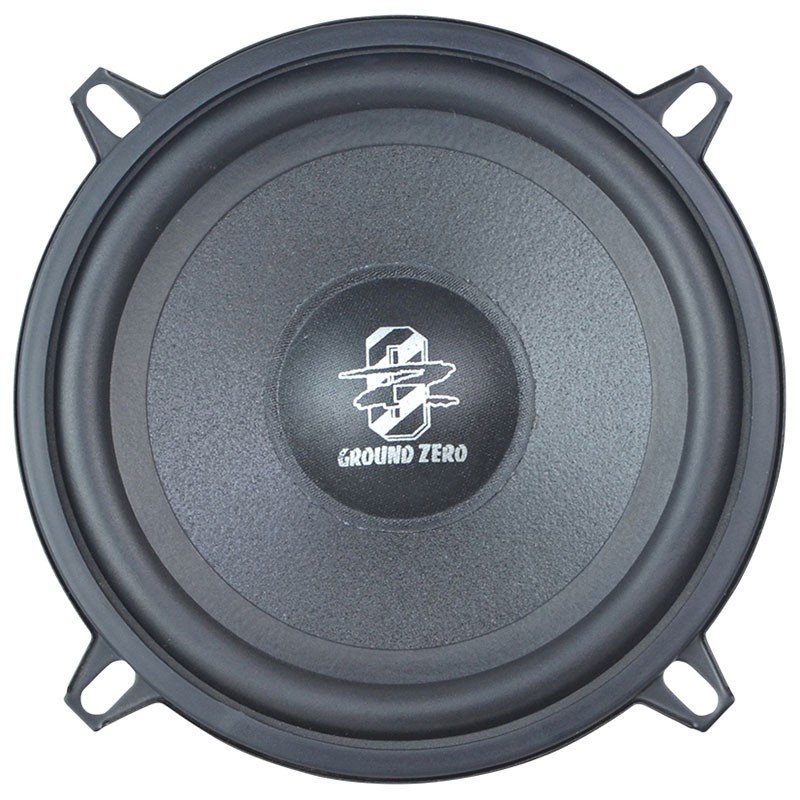

Diameter of midwoofer or midrange: 130 mm / 5.25″
Mounting diameter of midwoofer or midrange: 117.5 mm / 4.63”
Mounting depth of midwoofer or midrange3: 6 mm / 1.42”
Voice coil of midwoofer or midrange: 25 mm / 1″
Cone of midwoofer or midrange: Coated paper cone
Dustcap / Phaseplug of midwoofer or midrange: Cloth
Basket of midwoofer or midrange: Steel
Magnet of midwoofer or midrange: Ferrit
Voice coil of tweeter: 19 mm / 0.75″
Cone of tweeter: Silk
Housing of tweeter: Plastic injection
Magnet of tweeter: Ferrit and Piezoelectric
Power handling: WRMS80 W
Power handling W peak: 120 W
Impedance: 4 Ohm
SPL: 89 dB
Frequency response: 60 Hz – 20 KHz.

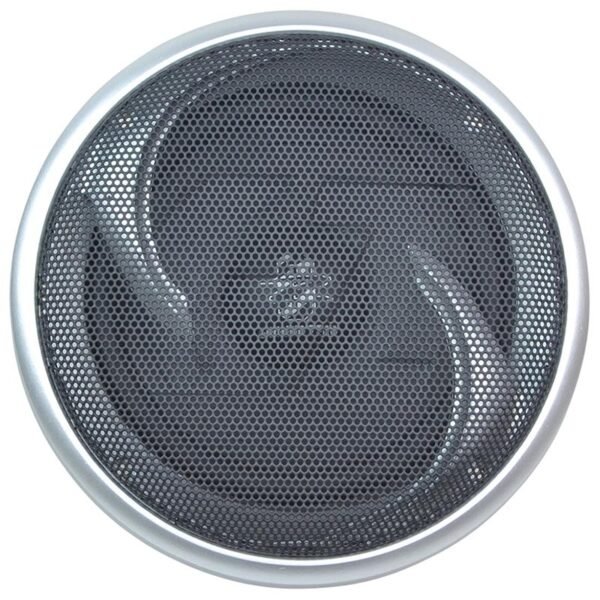

Incl. protection grill
