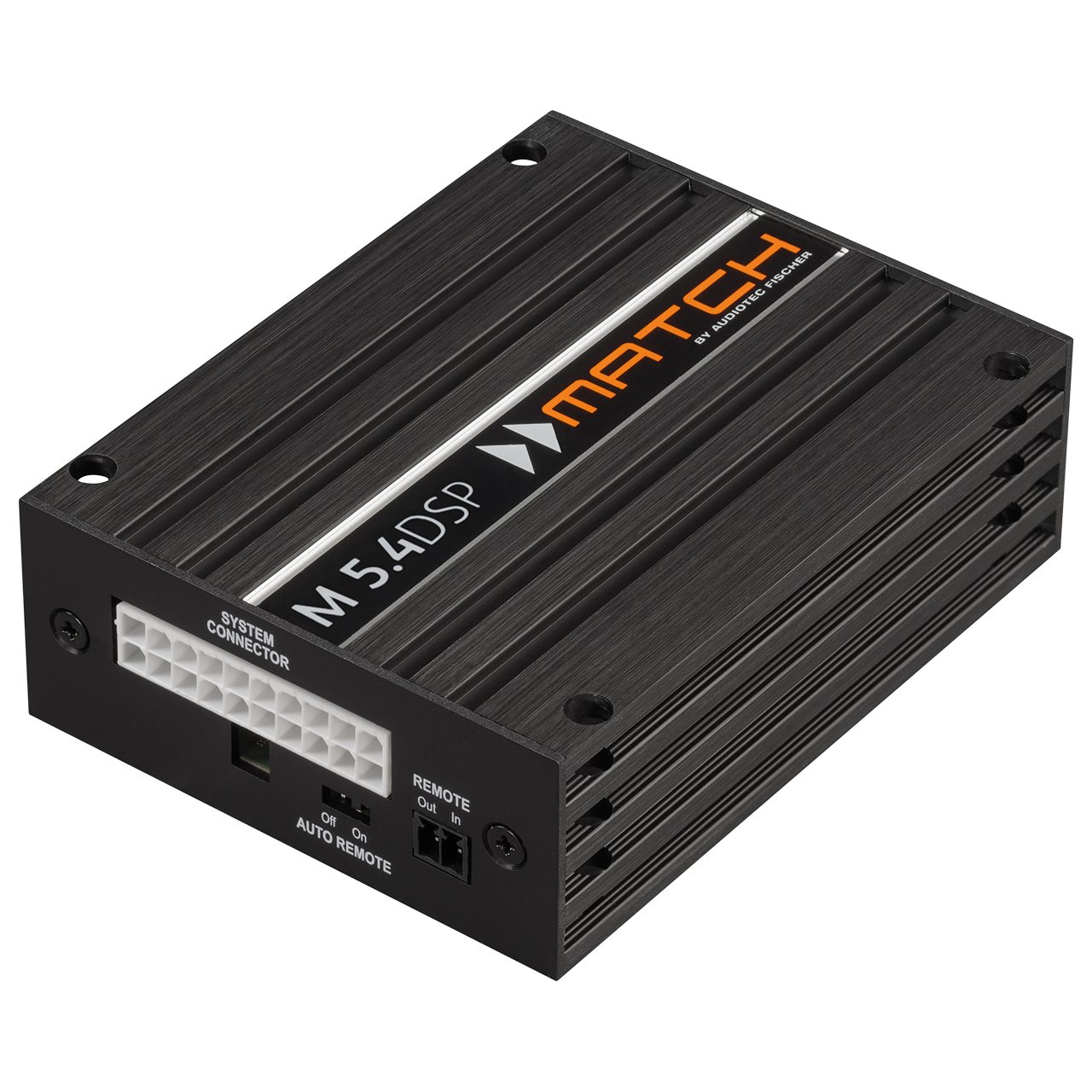

Match M 5.4DSP

Output power RMS
– @ 4 OhmsHighPower mode: 4 x 60 Watts
MidPower mode: 4 x 35 Watts
– @ 2 Ohms-
– @ 1 Ohm-
– bridged @ 4 Ohms-
– bridged @ 2 Ohms-
– Subwoofer output @ 4 OhmsHigh- and MidPower mode: 1 x 90 Watts
– Subwoofer output @ 2 OhmsHigh- and MidPower mode: 1 x 160 Watts
Amplifier technologyClass GD
Inputs4 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Remote in
Input sensitivity5 – 11 Volts
Input impedance RCA / Cinch-
Input impedance highlevel9 – 33 Ohms with ADEP.3
Outputs
5 x Speaker output
4 x RCA / Cinch
1 x Remote Out

Output voltage RCA / Cinch3 Volts
Frequency response20 Hz – 20,000 Hz
DSP resolution64 Bit
DSP power295 MHz (1.2 billion MAC operations/second)
Sampling rate48 kHz
DSP typeAudio signal processor
Signal converters
A/D: BurrBrown
D/A: BurrBrown

Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input 99 dB (A-weighted)
Distortion (THD) 0.03 %
Damping factor 50
Operating voltage10.5 – 17 Volts (max. 5 sec. down to 6 Volts)
Power ratingDC 12 V ⎓ 40 A max.
Idle current280 mA
Max. remote output current500 mA
Fuse1 x 30 A Maxi-fuse (APX)
Additional features32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch, Smart Control Port, Start-Stop capability, USB
Dimensions (H x W x D)35 x 85 x 110 mm / 1.34 x 3.35 x 4.33″
Scope of delivery
1 x MATCH micro amplifier M 5.4DSP
1 x Control Input-to-SCP adaptor
1 x USB cable
1 x Connection cable PP-IOC (0.50 meter)
1 x Subwoofer connection cable PP-SOC (0.45 meter)
1 x Line Output-to-RCA cable
1 x Mounting material
1 x Instruction manual.
