Description

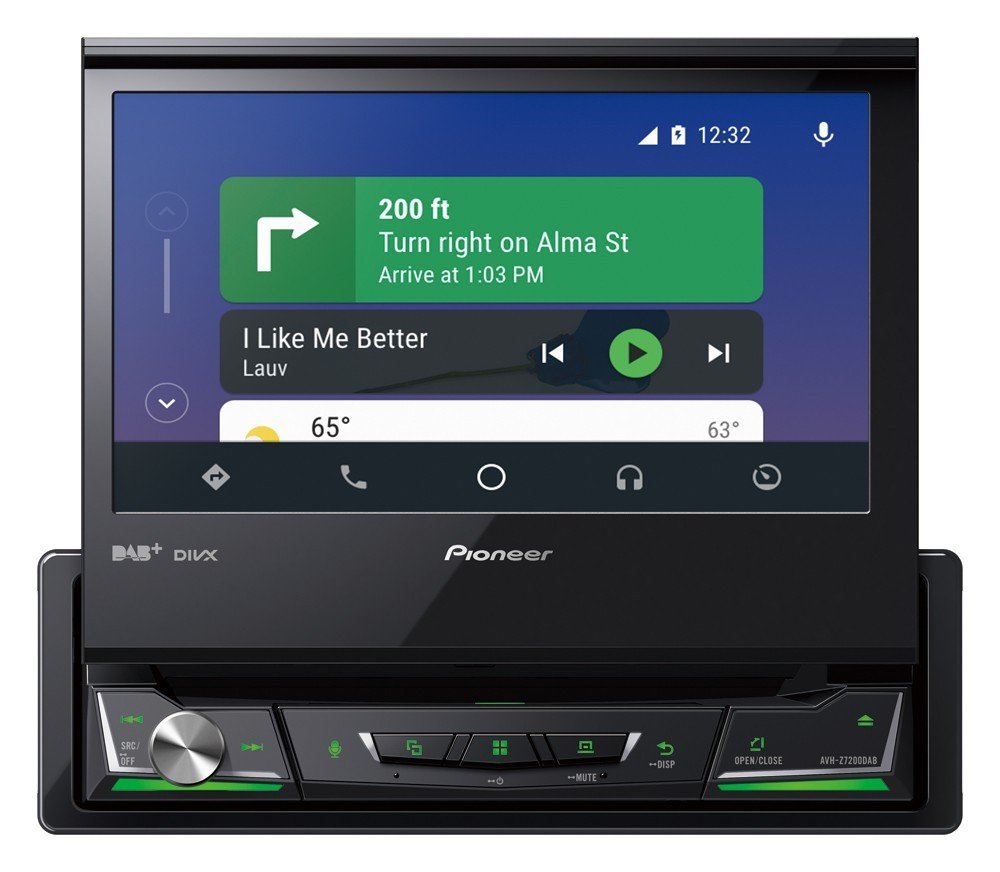

The AVH-Z7200DAB is a 1-DIN DVD receiver featuring a built-in DSP processor and a motorized 7″ touchscreen display.
An iOS or Android smartphone can be connected via USB cable to enable Apple CarPlay, Android Auto, and Waze through AppRadio Mode+. This allows for intuitive and safe control of supported applications.
The AVH-Z7200DAB also includes Bluetooth audio streaming and Bluetooth hands-free functionality, three line-level outputs, a line input, an RDS radio, and a USB connection.
Specifications
Audio Outputs
3 × line outputs (4 V)
Standard Mode = Subwoofer + Front + Rear outputs
Network Mode = Subwoofer + Midrange + Tweeter outputs
Connections
1 × video output for additional monitor
1 × AUX IN line input (3.5 mm stereo jack)
1 × AV line input via RCA connectors (rear of unit)
1 × rear USB port (USB extension cable included)
1 × rear-view camera input (camera sold separately)
1 × front camera input (camera sold separately)
Standard Mode
Front and rear outputs: High-pass filter (HPF) for main speakers
Cutoff frequencies: 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
HPF slope: 0 / 6 / 12 / 18 / 24 dB/oct
Subwoofer output: Low-pass filter (LPF)
Cutoff frequencies: 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
LPF slope: 0 / 6 / 12 / 18 / 24 dB/oct
Subwoofer level adjustment: –24 dB to +10 dB (1 dB steps)
Subwoofer phase: Normal / Reverse
Network Mode
Low-pass filter for subwoofer, band-pass filters for midrange, and high-pass filter for tweeters
Subwoofer
Low LPF: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
Low LPF slope: 12 / 18 / 24 / 30 / 36 dB/oct
Low level: –24 dB to +10 dB
Subwoofer phase: Normal / Reverse
Midrange
Mid HPF: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
Mid HPF slope: 0 / 6 / 12 / 18 / 24 dB/oct
Mid LPF: 1.25 / 1.6 / 2 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz
Mid LPF slope: 0 / 6 / 12 / 18 / 24 dB/oct
Mid level: –24 dB to 0 dB
Tweeters
High HPF: 1.25 / 1.6 / 2 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz
High HPF slope: 6 / 12 / 18 / 24 dB/oct
High level: –24 dB to 0 dB
Time Alignment
Per-channel time delay: 0–350 cm (2.5 cm steps)
Equalizer
13-band graphic EQ
50 Hz / 80 Hz / 125 Hz / 200 Hz / 315 Hz / 500 Hz / 800 Hz
1.25 kHz / 2 kHz / 3.15 kHz / 5 kHz / 8 kHz / 12.5 kHz
Adjustment range: ±12 dB
Bluetooth
Bluetooth audio streaming
Bluetooth hands-free
Hands-free microphone and microphone mount are included in the package.
